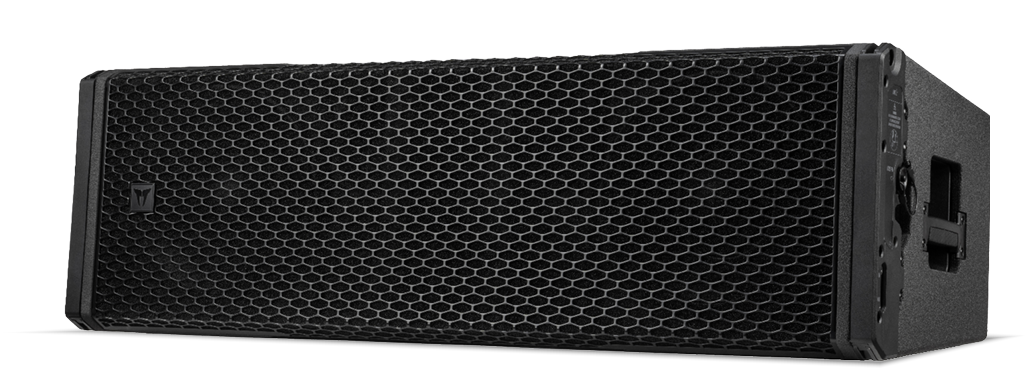

GTX 12
Three-WAY LINE ARRAY MODULE
The GTX 12 is a three-way line array module for large-scale, high-demanding touring and install applications, indoors and outdoors. Equipped with eight best-in-class transducers, it offers excellent playback quality and optimized directivity. Up to 24 GTX 12 modules can be suspended on a single fly-bar.
148 dB MAX SPL
4 X 6” NEODYMIUM MIDRANGE TRANSDUCER, 2” V.C.
2 X 3” NEODYMIUM COMPRESSION DRIVERS
2 X 12” NEODYMIUM WOOFERS, 3.5” V.C.
90° X 10° 4PATH WAVEGUIDE
DESIGNED TO OPERATE WITH XPS 16K AMPLIFIER
(4 XPS channels powering up to 3 modules)
TOUR-TESTED WEATHER RESISTANT BIRCH PLYWOOD
ENCLOSURE WITH DURABLE POLYUREA COATING
HEAVY DUTY, POWDER COATED,
CUSTOM PERFORATED FRONT GRILLE
2 X P-COM 8 POLE BAYONET CONNECTORS
(Gold-plated, CA-COM compatible, IP 68)
UNLEASHING THE POWER OF PRECISION
THE TOUR SOUND SOLUTION
GTX 12 evolved from TT+ AUDIO’s continued effort to deliver powerful and trustworthy sound reinforcement systems for demanding sound providers. Whether for large concerts, festivals or permanent installations, the GTX 12 system delivers the best possible audio experience, surpassing any product TT+ AUDIO has ever created.
THE POWER OF SYMMETRY
The symmetrical multi-ply enclosure design and component topology produce consistent coverage from left to right. Symmetrical component positioning and special DSP crossover filtering provide constant directivity and perfect continuity of the hemicylindrical wave directivity without lobes and discontinuities.
Frequency modulations are avoided by the optimized active crossover design.
HIGH FREQUENCY
Boasting two 3″ rugged titanium dome compression drivers with a high flux density neodymium magnet, a 3-inch voice coil and the exceptional capabilities of the 4PATH waveguide, the HF section effectively capitalizes on its low crossover point, resulting in a phase-coherent coverage of 100° x 10°.
MID FREQUENCY
Critical mid-range frequencies rely on the high output design of the four 6-inch neodymium midrange transducers with 2” voice coils in coplanar configuration, with minimal power compression characteristics and low harmonic distortion.
LOW FREQUENCY
Two 12” HyperVented woofers with 3.5” inside-outside voice coils and high-grade neodymium magnets are the solid foundation of the GTX 12. High-damping cone materials and an extremely fast motor section provide remarkable dynamic range and detailed reproduction.
RIGGING HARDWARE
Optimized hardware for speed and efficiency, providing streamlined suspension with anti-rattle locks and a unique captive rear hinge bar mechanism that slips into the angle preset position in both Tension or Compression Modes.
