GTX 10 Line Array System
These items are not typically rented out for short term rentals. Have an upcoming event? Check out our Events page to learn more and get an AV quote.

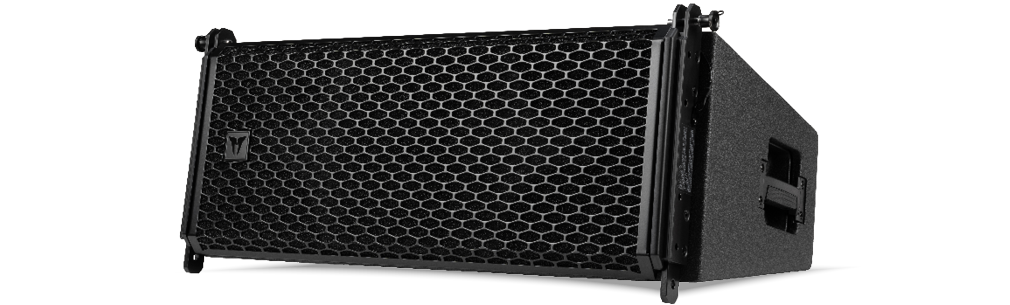

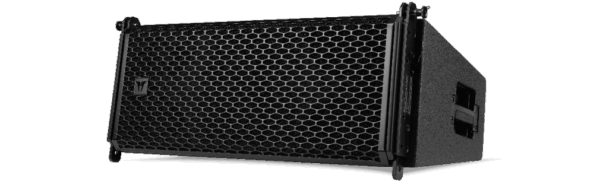

GTX 10
TWO-WAY LINE ARRAY MODULE
The GTX 10 is a two-way line array module for medium to large-size, high-demanding touring and install applications, indoors and outdoors. Equipped with three best-in-class transducers, it offers excellent playback quality and optimized directivity. Up to 24 GTX 10 modules can be fastened on a single fly-bar.
143 dB MAX SPL
1 X 4” NEODYMIUM COMPRESSION DRIVER
2 X 10” NEODYMIUM WOOFERS, 3” V.C.
110° X 15° 4PATH WAVEGUIDE
DESIGNED TO OPERATE WITH XPS 16K AMPLIFIER
(4 XPS channels powering up to 6 modules)
TOUR-TESTED, WEATHER-RESISTANT BIRCH PLYWOOD
ENCLOSURE WITH DURABLE POLYUREA COATING
HEAVY DUTY, POWDER COATED,
CUSTOM PERFORATED FRONT GRILLE
3 X P-COM 8 POLE BAYONET CONNECTORS
(Gold-plated, CA-COM compatible, IP 68)
Ten out of Ten
Tour-Worthy Workhorse
The GTX 10 is the solution for medium-sized events where high scalability and fast deployment are required. While the GTX system is already the epitome of quality in the TT+ AUDIO catalog, the GTX 10 line array incorporates this philosophy fully, providing remarkable power and extreme clarity in a small and fast-to-deploy package.
POLYUREA COATING ADVANTAGES
All TT+ AUDIO enclosures are finished with a highly durable polyurea coating that provides excellent waterproofing and corrosion protection and withstands abrasion, impacts, and mechanical stress. Its extreme elasticity maintains flexibility even in low temperatures – perfect for enclosures prone to vibrations such as high-power subwoofers. It also exhibits strong chemical resistance and does not emit any VOCs (volatile organic compounds), making it environmentally friendly and safe for human health.
HIGH FREQUENCY
The 4-inch titanium dome compression drivers, equipped with high-current neodymium magnets, are designed to fully leverage the remarkable capabilities of the TRW-4PATH waveguide. As a result, the GTX10’s 110° x 15° coverage is finely matched with the output of its woofers for perfect phase coherence.
LOW FREQUENCY
The low distortion, high output design of the two 10” HyperVented woofers ensure superb fidelity and high dynamic range. With 3.0” inside-outside voice coils and high flux density neodymium magnets, the fast, high-stiffness motor section provide high impact low frequency reproduction.
ENCLOSURE AND RIGGING HARDWARE
The sturdy weather-resistant birch multi-ply enclosure with durable polyurea coating features optimized hardware for speed and efficiency, with a rear hinge bar mechanism that slips into the angle preset position when hoisting the array. The optional cart (Model# KRT-WH 002) allows for the transport of four GTX 10 enclosures, with custom-designed protective covers for safe handling.
